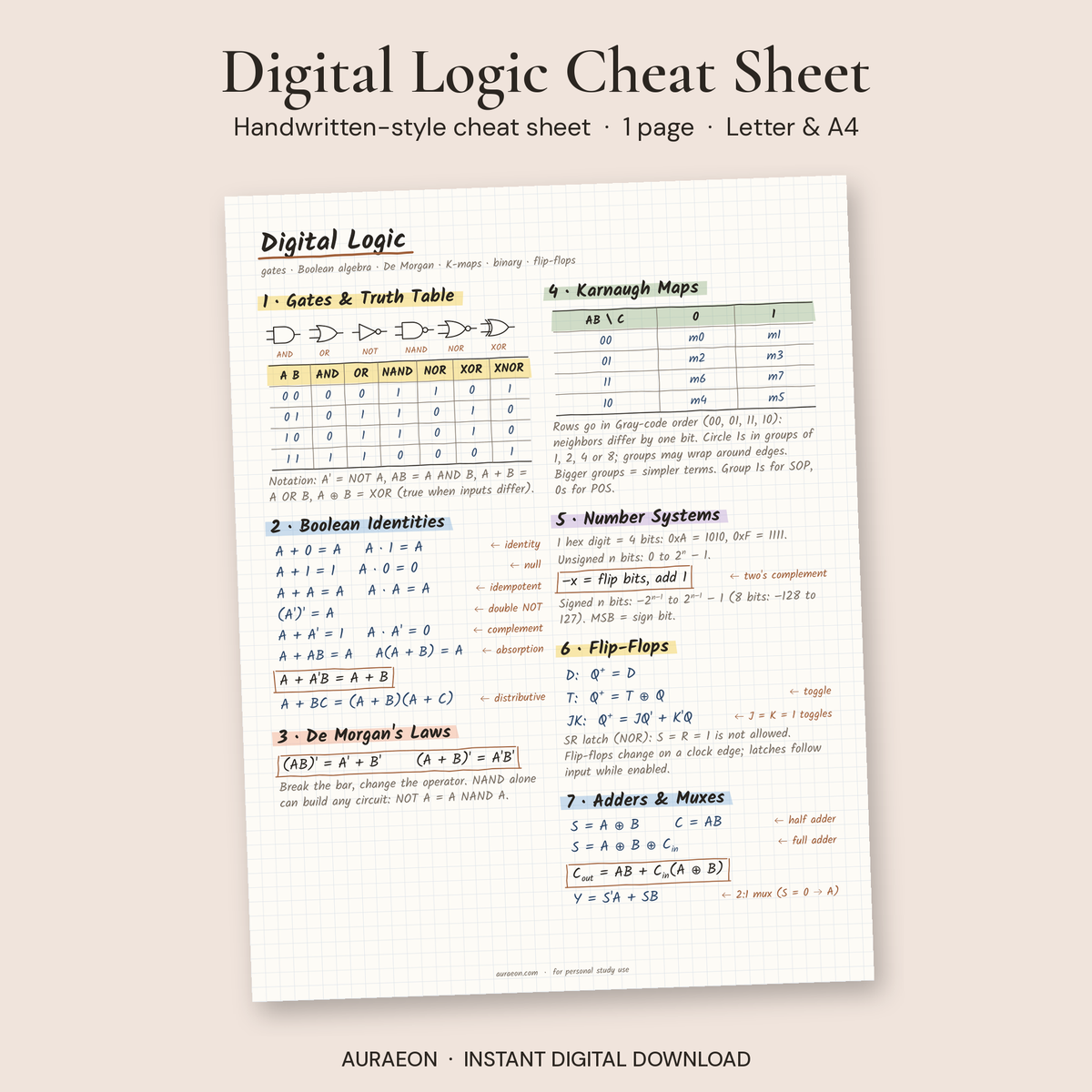

Digital Logic Cheat Sheet

A one-page reference for a first digital logic or computer organization course.

What's Covered

• Gate symbols and a full truth table (AND, OR, NAND, NOR, XOR, XNOR)
• Boolean identities, absorption and De Morgan's laws
• Karnaugh maps: Gray-code order, grouping rules, SOP and POS
• Binary, hex and two's complement ranges
• D, T and JK flip-flops and SR latches
• Half adders, full adders and the 2:1 multiplexer

You'll Receive

• One-page PDF in US Letter and A4 (one zip download)
• Print at 100%, or annotate it in GoodNotes, Notability or any PDF app

Why Students Like It

• Handwritten-style notes on grid paper, color-coded by topic
• Key formulas boxed, with short notes on when to use each one

Written and designed by Auraeon with AI assistance. Formulas were checked, but notation and sign conventions vary between courses, so follow your instructor's.

This is a digital download: no physical item will be shipped. For personal study use only. Please don't resell or share the files.
