Digital Logic Complete Notes

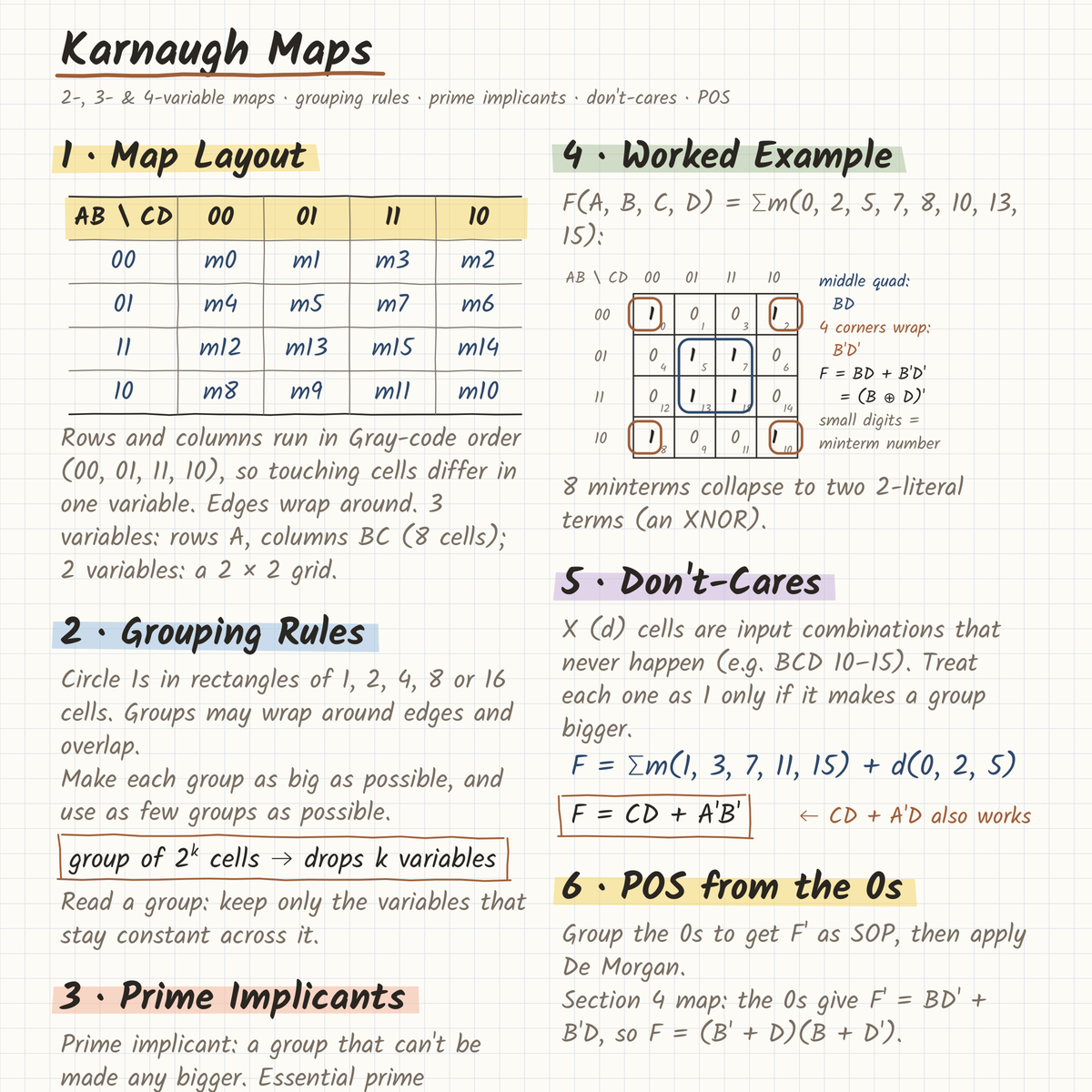

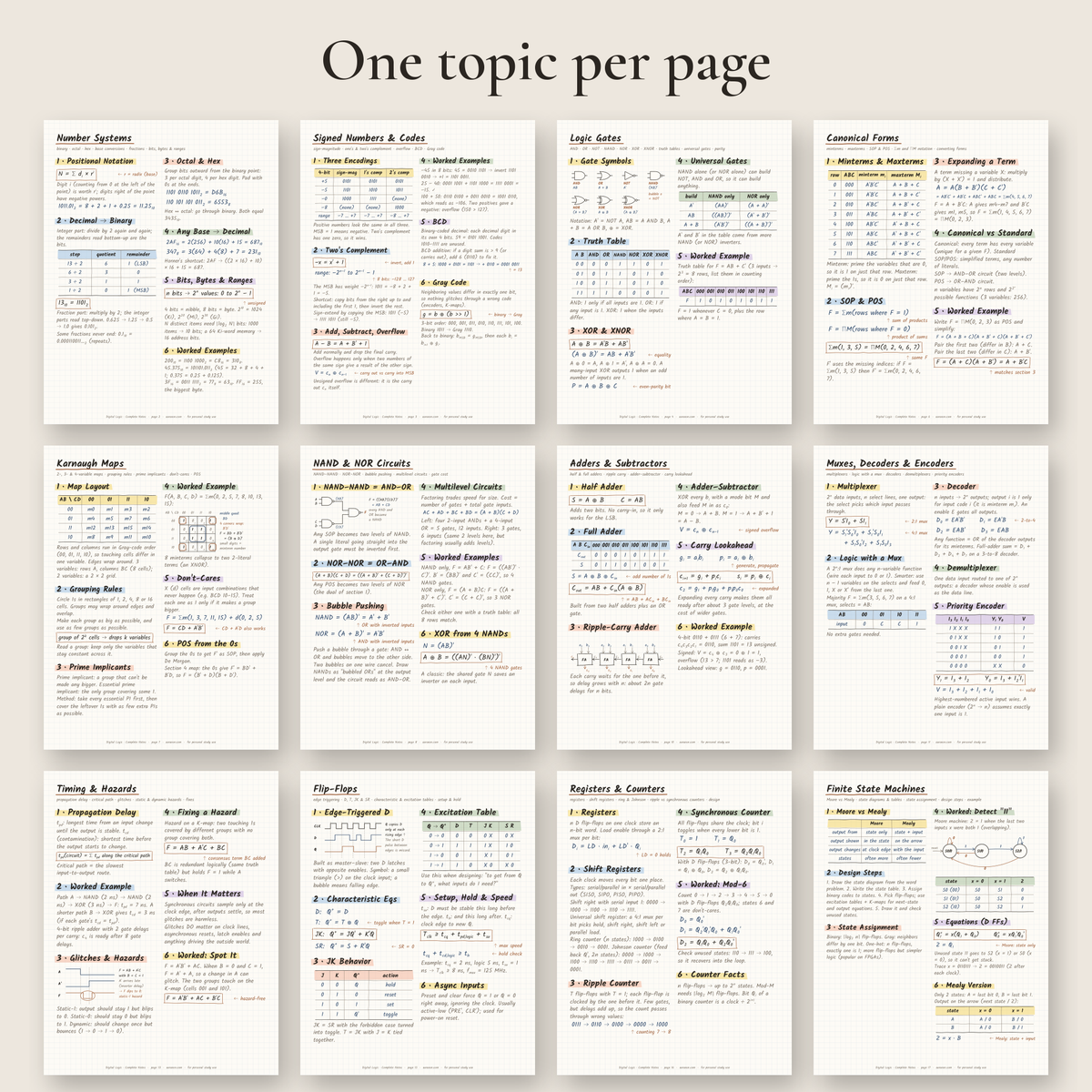

A full intro digital logic / digital design course in 20 handwritten-style pages: one topic per page, key equations boxed, and worked examples on most pages.

Numbers & Boolean Algebra
Number Systems · Signed Numbers & Codes (two's complement, BCD, Gray) · Logic Gates · Boolean Algebra · Canonical Forms · Karnaugh Maps

Combinational Logic
NAND & NOR Circuits · Combinational Design · Adders & Subtractors · Muxes, Decoders & Encoders · Comparators & ALUs · Timing & Hazards

Sequential Logic, Memory & Verilog
Latches · Flip-Flops · Registers & Counters · Finite State Machines · Memory & Programmable Logic · Verilog Basics

Plus

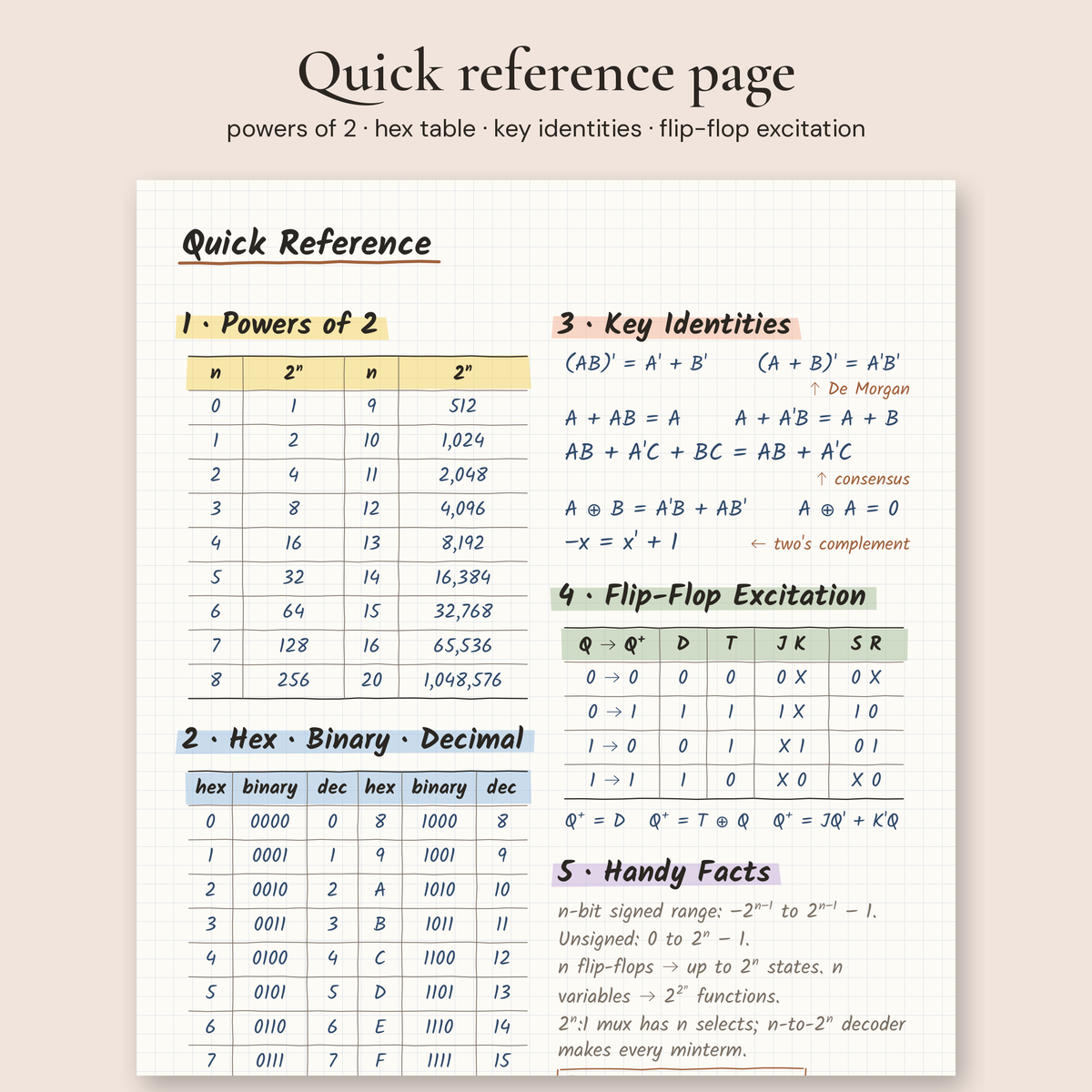

• A quick-reference page: powers of 2, hex table, key identities, flip-flop excitation table
• A contents page and clickable PDF bookmarks

You'll receive

• One 20-page PDF in US Letter and one in A4 (one zip download)
• Print at 100%, or annotate in GoodNotes, Notability or any PDF app

Written and designed by Auraeon with AI assistance. Every conversion, truth table and simplified expression was rechecked by computer, but notation varies between courses (A' vs. an overbar, for example), so follow your instructor's.

Instant digital download. For personal study use only; please don't resell or share the files.
